The Umbrella adapter for the R3, R4, R5, R6, R7, R8, A25, A28, 2006+ 232, 2011+ 242, 2009+ 262 and SD24 models enables use of 1.5″ diameter 2-piece umbrellas with thumb latches located in the upper half.
Made from 316 Stainless steel. Hand machined and TIG welded.
This threads into the ski pylon receptacle and enables the use of 2 piece umbrellas that ‘click’ into place using the umbrella thumb latch for locking or 1.375″ diameter umbrella poles which can be drilled out to use a bolt for securing in place.
A pinch thumbscrew is included, but we recommend using the through bolt or thumb latch style for maximum umbrella holding power. See the detail sheet for more information.

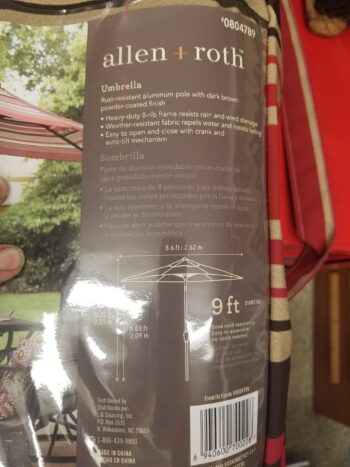

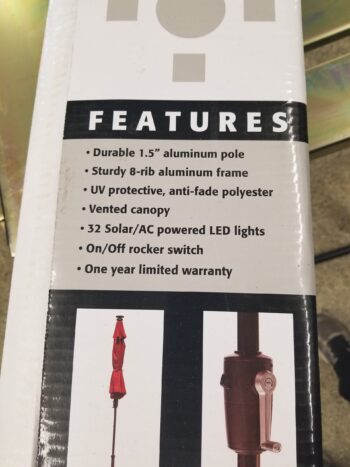

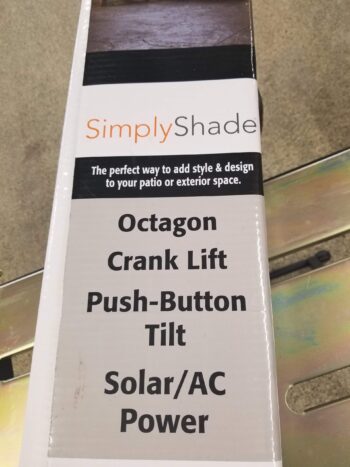

The inner diameter of the adapter is 1.375″ diameter. Please note, however, that the design is intended to allow the use of Umbrellas labeled as “1.5 Inch Diameter” as long as the umbrella is a 2-piece umbrella and the thumb release is located in the upper half. For these umbrellas, the lower pole of the umbrella is not used when installing onto the adapter.
